Maven Job Fails If A Read Variable Task Is Added Before Maven Task

[Krishna Misra]

Hi,

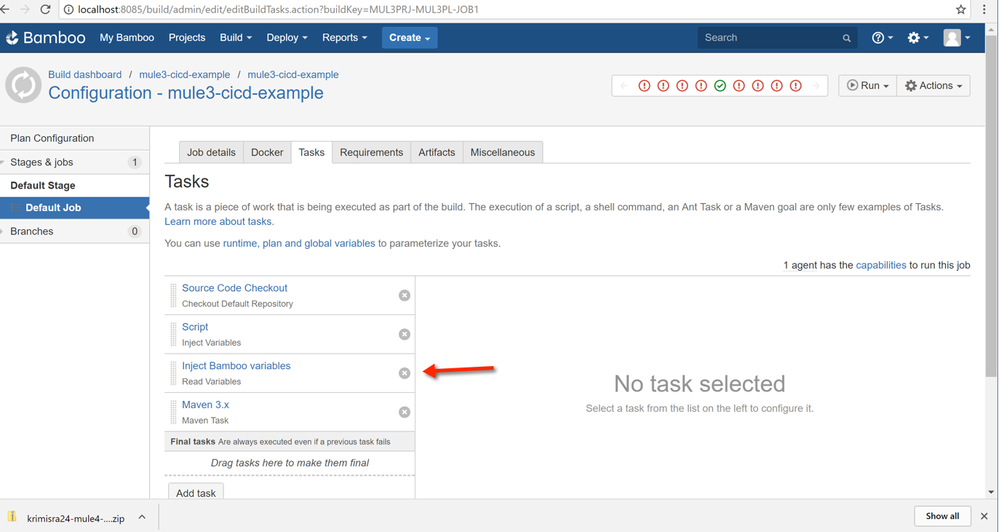

I'm trying to use the Inject Variables task prior to Maven 3.x task. This causes maven build to fail(exit with -1 code instead of 0). If I remove this, then it all works fine. Here are the logs and screenshot:-

simple 01-May-2018 07:04:25 Build mule3-cicd-example - mule3-cicd-example - Default Job #9 (MUL3PRJ-MUL3PL-JOB1-9) started building on agent Default Agent
simple 01-May-2018 07:04:25
simple 01-May-2018 07:04:25 Build working directory is C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1
simple 01-May-2018 07:04:25 Executing build mule3-cicd-example - mule3-cicd-example - Default Job #9 (MUL3PRJ-MUL3PL-JOB1-9)
simple 01-May-2018 07:04:25 Starting task 'Checkout Default Repository' of type 'com.atlassian.bamboo.plugins.vcs:task.vcs.checkout'
simple 01-May-2018 07:04:25 Checking out into C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1
simple 01-May-2018 07:04:25 Updating source code to revision: 7dfb3ab64d471cc3c706976b2ad45cdc72698a27
simple 01-May-2018 07:04:29 Git: Updating references
simple 01-May-2018 07:04:29 Git:
simple 01-May-2018 07:04:29 Fetching '+refs/heads/master:refs/heads/master' from 'https://bitbucket.org/krimisra24/cicd'.
simple 01-May-2018 07:04:29 Checking out revision 7dfb3ab64d471cc3c706976b2ad45cdc72698a27.
simple 01-May-2018 07:04:32 Updated source code to revision: 7dfb3ab64d471cc3c706976b2ad45cdc72698a27
simple 01-May-2018 07:04:32 Finished task 'Checkout Default Repository' with result: Success
simple 01-May-2018 07:04:32 Running pre-build action: VCS Version Collector
simple 01-May-2018 07:04:32 Starting task 'Inject Variables' of type 'com.atlassian.bamboo.plugins.scripttask:task.builder.script'
command 01-May-2018 07:04:32 Beginning to execute external process for build 'mule3-cicd-example - mule3-cicd-example - Default Job #9 (MUL3PRJ-MUL3PL-JOB1-9)'\n ... running command line: \nC:\Users\krishnamisra\bamboo-home-new\temp\MUL3PRJ-MUL3PL-JOB1-9-ScriptBuildTask-4083120186627646746.ps1\n ... in: C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\n ... using extra environment variables: \nbamboo_planRepository_1_branch=master\nbamboo_repository_360450_previous_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_repository_360450_branch_name=master\nbamboo_planRepository_1_branchDisplayName=master\nbamboo_repository_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_capability_system_builder_msbuild_MSBuild_v14_0__64bit_=C:\Program Files (x86)\MSBuild\14.0\bin\amd64\MSBuild.exe\nbamboo_resultsUrl=http://10.211.55.3:8085/browse/MUL3PRJ-MUL3PL-JOB1-9\nbamboo_capability_system_builder_msbuild_MSBuild_v4_0__32bit_=C:\WINDOWS\Microsoft.NET\Framework\v4.0.30319\MSBuild.exe\nbamboo_build_working_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\nbamboo_planRepository_1_name=cicd\nbamboo_buildKey=MUL3PRJ-MUL3PL-JOB1\nbamboo_shortPlanName=mule3-cicd-example\nbamboo_repository_360450_name=cicd\nbamboo_planRepository_name=cicd\nbamboo_buildNumber=9\nbamboo_short... Job\nbamboo_buildResultsUrl=http://10.211.55.3:8085/browse/MUL3PRJ-MUL3PL-JOB1-9\nbamboo_planRepository_repositoryUrl=https://bitbucket.org/krimisra24/cicd\nbamboo_agentId=196609\nbamboo_planName=mule3-cicd-example - mule3-cicd-example\nbamboo_shortPlanKey=MUL3PL\nbamboo_shortJobKey=JOB1\nbamboo_planRepository_revision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_buildTimeStamp=2018-05-01T07:04:25.579+10:00\nbamboo_repository_previous_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_planRepository_previousRevision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_buildResultKey=MUL3PRJ-MUL3PL-JOB1-9\nbamboo_repository_branch_name=master\nbamboo_buildPlanName=mule3-cicd-example - mule3-cicd-example - Default Job\nbamboo_planRepository_1_revision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_repository_name=cicd\nbamboo_dependenciesDisabled=false\nbamboo_buildFailed=false\nbamboo_planRepository_branch=master\nbamboo_agentWorkingDirectory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\nbamboo_planRepository_1_previousRevision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_planRepository_branchDisplayName=master\nbamboo_capability_system_jdk_JDK_1_8_0_151=C:\Program Files\Java\jdk1.8.0_151\nbamboo_planRepository_1_type=bbCloud\nbamboo_planRepository_branchName=master\nbamboo_capability_system_jdk_JDK=C:\Program Files\Java\jdk1.8.0_151\nbamboo_plan_storageTag=plan-425985\nbamboo_repository_360450_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_hg_cache_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\_hg-repositories-cache\nbamboo_planRepository_1_username=krimisra24\nbamboo_planRepository_type=bbCloud\nbamboo_capability_system_builder_msbuild_MSBuild_v14_0__32bit_=C:\Program Files (x86)\MSBuild\14.0\bin\MSBuild.exe\nbamboo_git_cache_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\_git-repositories-cache\nbamboo_ManualBuildTriggerReason_userName=admin\nbamboo_capability_system_builder_msbuild_MSBuild_v4_0__64bit_=C:\WINDOWS\Microsoft.NET\Framework64\v4.0.30319\MSBuild.exe\nbamboo_capability_system_builder_mvn3_Maven_Executable___New=C:\softwares\apache-maven-3.3.9\nbamboo_tmp_directory=C:\Users\krishnamisra\bamboo-home-new\temp\nbamboo_working_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\nbamboo_capability_system_builder_mvn3_Maven_Executable=C:\maven\apache-maven-3.5.3-bin\apache-maven-3.5.3\nbamboo_planKey=MUL3PRJ-MUL3PL\nbamboo_planRepository_1_repositoryUrl=https://bitbucket.org/krimisra24/cicd\nbamboo_planRepository_username=krimisra24\nbamboo_capability_system_jdk_JDK_1_8=C:\Program Files\Java\jdk1.8.0_151\nbamboo_planRepository_1_branchName=master\n
simple 01-May-2018 07:04:32 Finished task 'Inject Variables' with result: Success
simple 01-May-2018 07:04:32 Starting task 'Read Variables' of type 'com.atlassian.bamboo.plugins.bamboo-variable-inject-plugin:inject'
simple 01-May-2018 07:04:32 Injected variable bamboo.inject.ˇ˛test1=test1 in LOCAL scope
simple 01-May-2018 07:04:32 Injected variable bamboo.inject.= in LOCAL scope
simple 01-May-2018 07:04:32 Finished task 'Read Variables' with result: Success
simple 01-May-2018 07:04:32 Starting task 'Maven Task' of type 'com.atlassian.bamboo.plugins.maven:task.builder.mvn3'
command 01-May-2018 07:04:32 Beginning to execute external process for build 'mule3-cicd-example - mule3-cicd-example - Default Job #9 (MUL3PRJ-MUL3PL-JOB1-9)'\n ... running command line: \nC:\softwares\apache-maven-3.3.9\bin\mvn.cmd --batch-mode -Djava.io.tmpdir=C:\Program Files\Bamboo_New\temp\MUL3PRJ-MUL3PL-JOB1 -s C:/Users/krishnamisra/.m2/settings.xml -f mule3-cicd-example-api/pom.xml clean package\n ... in: C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\n ... using extra environment variables: \nbamboo_planRepository_1_branch=master\nbamboo_repository_360450_previous_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_repository_360450_branch_name=master\nbamboo_planRepository_1_branchDisplayName=master\nbamboo_repository_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nMAVEN2_HOME=C:\softwares\apache-maven-3.3.9\nbamboo_capability_system_builder_msbuild_MSBuild_v14_0__64bit_=C:\Program Files (x86)\MSBuild\14.0\bin\amd64\MSBuild.exe\nbamboo_resultsUrl=http://10.211.55.3:8085/browse/MUL3PRJ-MUL3PL-JOB1-9\nbamboo_capability_system_builder_msbuild_MSBuild_v4_0__32bit_=C:\WINDOWS\Microsoft.NET\Framework\v4.0.30319\MSBuild.exe\nbamboo_build_working_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\nbamboo_planRepository_1_name=cicd\nbamboo_buildKey=MUL3PRJ-MUL3PL-JOB1\nbamboo_shortPlanName=mule3-cicd-example\nbamboo_inject___t_e_s_t_1_=test1\nbamboo_repository_360450_name=cicd\nbamboo_planRepository_name=cicd\n... Job\nbamboo_buildResultsUrl=http://10.211.55.3:8085/browse/MUL3PRJ-MUL3PL-JOB1-9\nbamboo_planRepository_repositoryUrl=https://bitbucket.org/krimisra24/cicd\nbamboo_agentId=196609\nbamboo_planName=mule3-cicd-example - mule3-cicd-example\nbamboo_shortPlanKey=MUL3PL\nbamboo_shortJobKey=JOB1\nbamboo_planRepository_revision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_buildTimeStamp=2018-05-01T07:04:25.579+10:00\nbamboo_repository_previous_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_build_commandline_com_atlassian_bamboo_plugins_scripttask_task_builder_script_3=C:\Users\krishnamisra\bamboo-home-new\temp\MUL3PRJ-MUL3PL-JOB1-9-ScriptBuildTask-4083120186627646746.ps1\nbamboo_planRepository_previousRevision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nM2_HOME=C:\softwares\apache-maven-3.3.9\nbamboo_buildResultKey=MUL3PRJ-MUL3PL-JOB1-9\nbamboo_repository_branch_name=master\nbamboo_buildPlanName=mule3-cicd-example - mule3-cicd-example - Default Job\nbamboo_inject__=\nbamboo_planRepository_1_revision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_repository_name=cicd\nJAVA_HOME=C:\Program Files\Java\jdk1.8.0_151\nbamboo_dependenciesDisabled=false\nbamboo_buildFailed=false\nbamboo_planRepository_branch=master\nbamboo_agentWorkingDirectory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\nbamboo_planRepository_1_previousRevision=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_planRepository_branchDisplayName=master\nbamboo_capability_system_jdk_JDK_1_8_0_151=C:\Program Files\Java\jdk1.8.0_151\nbamboo_planRepository_1_type=bbCloud\nbamboo_planRepository_branchName=master\nbamboo_capability_system_jdk_JDK=C:\Program Files\Java\jdk1.8.0_151\nbamboo_plan_storageTag=plan-425985\nbamboo_repository_360450_revision_number=7dfb3ab64d471cc3c706976b2ad45cdc72698a27\nbamboo_hg_cache_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\_hg-repositories-cache\nbamboo_planRepository_1_username=krimisra24\nbamboo_planRepository_type=bbCloud\nbamboo_capability_system_builder_msbuild_MSBuild_v14_0__32bit_=C:\Program Files (x86)\MSBuild\14.0\bin\MSBuild.exe\nbamboo_git_cache_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\_git-repositories-cache\nbamboo_ManualBuildTriggerReason_userName=admin\nbamboo_capability_system_builder_msbuild_MSBuild_v4_0__64bit_=C:\WINDOWS\Microsoft.NET\Framework64\v4.0.30319\MSBuild.exe\nuseMavenReturnCode=false\nbamboo_capability_system_builder_mvn3_Maven_Executable___New=C:\softwares\apache-maven-3.3.9\nbamboo_tmp_directory=C:\Users\krishnamisra\bamboo-home-new\temp\nbamboo_working_directory=C:\Users\krishnamisra\bamboo-home-new\xml-data\build-dir\MUL3PRJ-MUL3PL-JOB1\nbamboo_capability_system_builder_mvn3_Maven_Executable=C:\maven\apache-maven-3.5.3-bin\apache-maven-3.5.3\nbamboo_planKey=MUL3PRJ-MUL3PL\nbamboo_planRepository_1_repositoryUrl=https://bitbucket.org/krimisra24/cicd\nbamboo_planRepository_username=krimisra24\nbamboo_capability_system_jdk_JDK_1_8=C:\Program Files\Java\jdk1.8.0_151\nbamboo_planRepository_1_branchName=master\nPath=C:\Program Files\Java\jdk1.8.0_151\bin;C:\ProgramData\Oracle\Java\javapath;C:\Program Files (x86)\Parallels\Parallels Tools\Applications;C:\WINDOWS\system32;C:\WINDOWS;C:\WINDOWS\System32\Wbem;C:\WINDOWS\System32\WindowsPowerShell\v1.0\;C:\Program Files\Microsoft SQL Server\Client SDK\ODBC\130\Tools\Binn\;C:\Program Files (x86)\Microsoft SQL Server\140\Tools\Binn\;C:\Program Files\Microsoft SQL Server\140\Tools\Binn\;C:\Program Files\Microsoft SQL Server\140\DTS\Binn\;C:\Program Files (x86)\Microsoft SQL Server\Client SDK\ODBC\130\Tools\Binn\;C:\Program Files (x86)\Microsoft SQL Server\140\DTS\Binn\;C:\Program Files (x86)\Microsoft SQL Server\140\Tools\Binn\ManagementStudio\;C:\Program Files\Java\jdk1.8.0_151\bin;C:\softwares\apache-maven-3.3.9\bin;C:\WINDOWS\system32\config\systemprofile\AppData\Local\Microsoft\WindowsApps\n
simple 01-May-2018 07:04:32 Failing task since return code of [C:\softwares\apache-maven-3.3.9\bin\mvn.cmd --batch-mode -Djava.io.tmpdir=C:\Program Files\Bamboo_New\temp\MUL3PRJ-MUL3PL-JOB1 -s C:/Users/krishnamisra/.m2/settings.xml -f mule3-cicd-example-api/pom.xml clean package] was -1 while expected 0
simple 01-May-2018 07:04:32 Finished task 'Maven Task' with result: Failed
simple 01-May-2018 07:04:32 Running post build plugin 'NCover Results Collector'
simple 01-May-2018 07:04:32 Running post build plugin 'Artifact Copier'
simple 01-May-2018 07:04:32 Running post build plugin 'npm Cache Cleanup'
simple 01-May-2018 07:04:32 Running post build plugin 'Clover Results Collector'
simple 01-May-2018 07:04:32 Running post build plugin 'Docker Container Cleanup'
simple 01-May-2018 07:04:32 Finalising the build...
simple 01-May-2018 07:04:32 Stopping timer.
simple 01-May-2018 07:04:32 Build MUL3PRJ-MUL3PL-JOB1-9 completed.
simple 01-May-2018 07:04:32 Running on server: post build plugin 'NCover Results Collector'
simple 01-May-2018 07:04:32 Running on server: post build plugin 'Build Hanging Detection Configuration'
simple 01-May-2018 07:04:32 Running on server: post build plugin 'Clover Delta Calculator'
simple 01-May-2018 07:04:32 Running on server: post build plugin 'Maven Dependencies Postprocessor'
simple 01-May-2018 07:04:32 All post build plugins have finished
simple 01-May-2018 07:04:32 Generating build results summary...
simple 01-May-2018 07:04:32 Saving build results to disk...
simple 01-May-2018 07:04:32 Logging substituted variables...
simple 01-May-2018 07:04:32 Indexing build results...
simple 01-May-2018 07:04:32 Finished building MUL3PRJ-MUL3PL-JOB1-9.

[Bill Carreon]

Hi Krishna,

This sounds like the Bamboo variables may be incorrect in the task for some reason. This can be caused by using an absolute path instead of a relative one. Bamboo offers a “dump variables to log” task that can be used to confirm that the variables are being assigned as expected.

Regards,

Bill
