Error when installing plugin to a Jira server behind Nginx

[stuck]

Hi all,

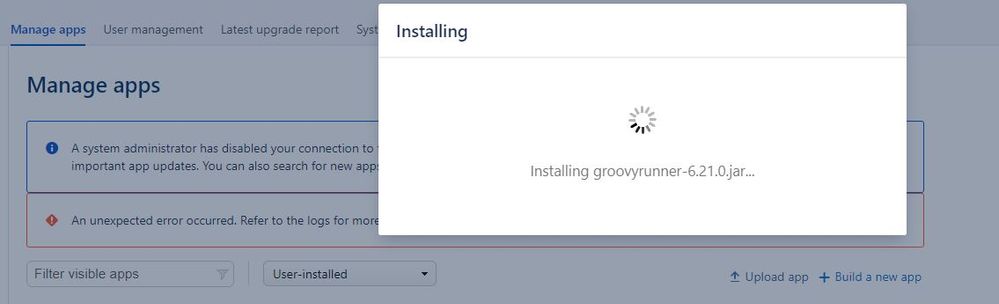

I am trying to install the ScriptRunner plugin to my Jira server however I got a strange error. When I select the plugin jar and click "Upload", behind the pop-up I got following error:

"An unexpected error occured. Refer to log file..."

(By the way, I couldn't find the "log file" so I am just guessing the error.)

I searched for the problem and find this page which is the same problem but in Stash.

So, I thought it may because of my configuration.

Currently, I can access the Jira from https://jira.domain.com in my domain.

My connector in server.xml:

<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
maxHttpHeaderSize="8192" SSLEnabled="true"
maxThreads="150" minSpareThreads="25"
enableLookups="false" disableUploadTimeout="true"
acceptCount="100" scheme="https" secure="true"
sslEnabledProtocols="TLSv1,TLSv1.1,TLSv1.2,TLSv1.3"
clientAuth="false" useBodyEncodingForURI="true"
keystoreFile="/Atlassian/cert.pfx" keystorePass="certpass" keystoreType="PKCS12"
relaxedPathChars="[]|" relaxedQueryChars="[]|{}^&#x5c;&#x60;&quot;&lt;&gt;"/>

And my configuration for nginx:

upstream jira.domain.com {
server 127.0.0.1:8443;
}

server {
listen 80;
server_name jira.domain.com;
rewrite ^(.*) https://$host$1 permanent;
}

server {
listen 443 ssl http2;
listen [::]:443 ssl http2;

server_name jira.domain.com;

proxy_read_timeout 720s;
proxy_connect_timeout 720s;
proxy_send_timeout 720s;

# Add Headers for proxy mode
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Real-IP $remote_addr;

# SSL
ssl on;
ssl_certificate /etc/nginx/certs/domainCert.crt;
ssl_certificate_key /etc/nginx/certs/domainCert.key;

ssl_session_timeout 30m;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers <some long cipher text>;
ssl_prefer_server_ciphers on;

# logging
access_log /var/log/nginx/jira.access.log;
error_log /var/log/nginx/jira.error.log warn;


location / {
proxy_redirect off;
# Attachment file size limit
client_max_body_size 32M;
proxy_pass https://jira.domain.com;
}

# gzip
gzip_types text/css text/less text/plain text/xml application/xml application/json application/javascript;
gzip on;
}

By the way, my Jira version is Jira server v8.0.0.

What may be the cause of this problem and how can I solve that?

------

EDIT:

When I disable the nginx and serve Jira through 8080 with its default configuration, I was able to upload the plugin.

What should be my configuration for nginx?

-----

Thanks

[stuck · Accepted solution]

Solved the problem. Cause was the proxy configuration!

I change my connector in server.xml like Jira's suggestion:

<Connector port="8080" relaxedPathChars="[]|" relaxedQueryChars="[]|{}^&#x5c;&#x60;&quot;&lt;&gt;"
maxThreads="150" minSpareThreads="25" connectionTimeout="20000" enableLookups="false"
maxHttpHeaderSize="8192" protocol="HTTP/1.1" useBodyEncodingForURI="true" redirectPort="8443"
acceptCount="100" disableUploadTimeout="true" bindOnInit="false" secure="true" scheme="https"
proxyName="jira.domain.com" proxyPort="443"/>

Also, my new nginx configuration is as following:

server {
listen 80;
server_name jira.domain.com;
root /usr/share/nginx/html;

location / {

return 301 https://$host$request_uri;
}

}

server {
listen 443 ssl;
server_name jira.domain.com;
root /usr/share/nginx/html;


ssl_session_cache shared:SSL:1m;

access_log /var/log/nginx/jira.access.log;
error_log /var/log/nginx/jira.error.log warn;

ssl_certificate /etc/nginx/certs/domainCert.crt;
ssl_certificate_key /etc/nginx/certs/domainCert.key;


ssl_session_timeout 10m;
ssl_prefer_server_ciphers on;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers '!DHE-DSS-AES256-GCM-SHA384:!DHE-RSA-AES256-GCM-SHA384:!DHE-RSA-AES256-SHA256:!DHE-DSS-AES256-SHA256:!DHE-RSA-AES256-SHA:!DHE-DSS-AES256-SHA:!DHE-RSA-CAMELLIA256-SHA:!DHE-DSS-CAMELLIA256-SHA:!DHE:!MD5:!RC4:!EXPORT:!aNULL:!eNull:!DHE-RSA-AES128-GCM-SHA256:!DHE-RSA-AES128-CBC-SHA256:kEECDH+ECDSA+AES128:kEECDH+ECDSA+AES256:kEECDH+AES128:kEECDH+AES256:kEDH+AES128:kEDH+AES256:+SHA:!aNULL:!eNULL:!LOW:!kECDH:!DSS:!MD5:!EXP:!PSK:!SRP:!CAMELLIA:!SEED:!3DES';#

location /secure/ForgotLoginDetails.jspa {
return 301 https://jira.domain.com;
}

location / {
client_max_body_size 100m;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://127.0.0.1:8080;
}
}

[Purevdorj Nyamdorj]

Hi, @stuck

How to find this XML files ?
