Possible bug - localhost hardcoded in jira

[Alexandru Lungu]

This is related to https://community.atlassian.com/t5/Jira-questions/Some-of-jira-links-point-to-localhost/qaq-p/1317799#M412573

I have uninstalled jira and installed it again fresh. Changed all "localhost" config references but it seems that they are hardcoded.

Can I get a version that is known to work ok?

[Akmal Harith]

Hi Alexandru,

Looking at your problem, it may relate to how your own environment is being configured. I would say try to install a vanilla instance without any proxy being configured, or bypass your current proxy configurations to verify this.

Could you also please clarify how exactly did you _Changed all "localhost" config references but it seems that they are hardcoded_ ?

Additionally, please take a look at a KB with the basic configurations to get Jira running behind Nginx here:

• Configure Jira server to run behind a NGINX reverse proxy

Try to follow as close as you can to our recommendation.

Hope this helps!

Best regards,
Akmal Harith | Atlassian Support

[Alexandru Lungu]

First time I have tested it without proxy; the same problem.

Replaced all localhost with domain.tld

I did exactly as recommended in Configure Jira server to run behind a NGINX reverse proxy

[JP _AC Bielefeld Leader_]

Hi,

I just checked on our 8.7.1 Jira with a newly created user. We use an Apache HTTPD reverse proxy in front of Jira handling SSL and other stuff.

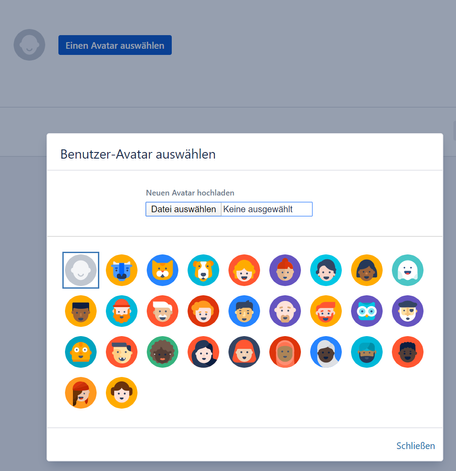

Avatars on the mentioned page (WelcomeToJIRA.jspa) are displayed correctly:

So I assume, it might be a configuration / caching issue on your side.

Best

JP

[Alexandru Lungu]

Almost the same situation here - except that I am using nginx instead of apache.

Is there a known incompatibility between jira and nginx?

The thing is that most of jira works ok; only some of the links point to localhost.

https://community.atlassian.com/t5/Jira-questions/Some-of-jira-links-point-to-localhost/qaq-p/1317799

I mean, I could add/edit projects/issues etc.

[JP _AC Bielefeld Leader_]

Hi,

I only know of sample configurations for Apache HTTPD. We use an AJP port of Tomcat to get some better performance & handling of connections between HTTPD & Tomcat. I'm not a nginx expert...

Best

JP

[Alexandru Lungu]

I have uninstalled nginx and I tried to use apache; unfortunately there is another problem with apache - I get a mix of http and https links.

Can you help me with a config for apache/jira?

I followed the guidelines Securing your Atlassian applications with Apache using SSL and I get exactly the same problem as I got with nginx.

[JP _AC Bielefeld Leader_]

HI,

I assume you terminate SSL/TLS at the proxy & use an unsecured connection between Apache HTTPD and Jira Tomcat.

Our server.xml Connector element using AJP:

<Connector port="8009"
relaxedPathChars="[]|"
relaxedQueryChars="[]|{}^&#x5c;&#x60;&quot;&lt;&gt;"
minSpareThreads="10"
maxThreads="200"
connectionTimeout="120000"
address="192.168..x.y"
protocol="AJP/1.3"
redirectPort="8444"
enableLookups="false"
URIEncoding="UTF-8"
maxPostSize="-1"
packetSize="65536"/>

On the Apache HTTPD side, the corresponding configuration (Module mod_ajp):

httpd-jk.conf

# Worker config
JkWorkersFile conf/extra/workers.properties
# Logging
JkLogFile logs/mod_jk.log
JkLogLevel warn
JkLogStampFormat "[%a %b %d %H:%M:%S %Y] "
JkOptions +ForwardURICompatUnparsed
JkEnvVar httpd YOURSERVERNAME
# Mount on all vhost and ssl
JkMountCopy All
JkMount  /jira jira;use_server_errors=500
JkMount  /jira/* jira;use_server_errors=500
# Modul (Admin)
JkMount  /jk-manage/* jk-manage
JkMount  /jk-manage jk-manage

<Location /jk-manage >
JkMount jk-manage
Require ip 192.168
Require ip 127
</Location>

workers.properties

# Global Settings
worker.maintain=30

# Default Settings
worker.basic.type=ajp13
worker.basic.socket_keepalive=true
worker.basic.ping_mode=A
worker.basic.ping_timeout=10000
worker.basic.connection_pool_timeout=120
worker.basic.recovery_options=7
worker.basic.lbfactor=1
worker.basic.max_packet_size=65536

# Jira
worker.list=jira
worker.jira.host=192.168.x.y
worker.jira.port=8009
worker.jira.connection_pool_size=200
worker.jira.socket_connect_timeout=3000
worker.jira.reference=worker.basic

# JK Manage Application
worker.list=jk-manage
worker.jk-manage.type=status

SSL/TLS is handle by Apache SSL configuration.

Listen 443
Mutex default

<VirtualHost YOURAPACHEIP:443>
Protocols h2 http/1.1
DocumentRoot "..../htdocs"
ServerName YOURFQDNFORYOURSERVER
ServerAdmin admin@a.b
ErrorLog ssl_error.log
TransferLog ssl_access.log
LogLevel warn
SSLEngine On
SSLHonorCipherOrder On
SSLProtocol all -SSLv2 -SSLv3
SSLCipherSuite USE YOUR CIPHER ORDER
SSLCertificateFile wildcard.crt
SSLCertificateKeyFile wildcard.key
SSLCACertificateFile wildcard.intermediate.crt

Header set Strict-Transport-Security "max-age=16070400; includeSubDomains"
RewriteEngine On
RewriteCond %{REQUEST_URI} !^/jira [NC]
RewriteCond %{REQUEST_URI} !^/jira/.* [NC]
RewriteCond %{REQUEST_URI} !^/jk-manage/.* [NC]
RewriteRule ^(.*)$ https://YOURFQDNFORYOURSERVER/jira [R=301,L]

# Atlassian Proxy Configuration:
ProxyRequests           Off
ProxyPreserveHost       On

<Proxy *>
Require all granted
</Proxy>

RemoteIPHeader          X-Forwarded-For

</VirtualHost>

You should implement some rules doing a port 80 to port 443 redirection (vhost.conf)

Jira Base URL should be set to

https://YOURFQDNFORYOURSERVER/jira

Good luck

JP

[JP _AC Bielefeld Leader_]

Is it working, when you use the non-proxy ports?

Best

JP

[Alexandru Lungu]

The app is installed on a server without gui - so, no browser - therefore I cannot test if the links with localhost point to real images - and accessing it from another pc implies a different localhost.

[JP _AC Bielefeld Leader_]

Does localhost pop up in the server.xml?

Best

JP

[Alexandru Lungu]

I changed that.

[JP _AC Bielefeld Leader_]

Hi,

did you set the base URL?

Best

JP

[Alexandru Lungu]

Yes, of course.
