Hey Community,
I'm trying to use a post function to create a new issue during a workflow transition. Here's my set up:
First Task: ABC-1
During a transition of this First Task, a new issue gets created with a Linked Relationship "is blocked by." I'll call this one the Second Task, ABC-2.
When this Second Task is marked Done, I want a third issue to be created. I'll call this the Third Task, ABC-3. This Third Task should be created with a link to the First Task (as "blocks").
So ABC-1 is blocked by ABC-2. When ABC-2 is transitioned to Done, it creates ABC-3, which also blocks ABC-1. So ABC-1 cannot be done until these other two are finished.
The issue I'm having trouble with is getting ABC-3 to be created with a link to ABC-1. I ended up storing the Parent Link value (ABC-1) on ABC-2, so I had some way to track it.
I set up a Post Function for ABC-2, and here's what it looks like:
// Set the Issue Summary
issue.summary = "Review: ' + sourceIssue.summary
// Set the Assignee
issue.assigneeId = 'firstname.lastname'
issue.reporter = sourceIssue.assignee
// Set the Original Estimate of the New Ticket to 30 Minutes
issue.setOriginalEstimate(30*60)
// Grab the Parent Link of this Ticket
def ParentLink = customFieldManager.getCustomFieldObjects(sourceIssue).find {it.name == 'Parent Link'}
issue.setCustomFieldValue(ParentLink, sourceIssue.getCustomFieldValue(ParentLink))
// Use the Parent Link to Create a Link of this new issue to the original Parent
linkIssue(issue.id, ParentLink,"blocks")
I have an error on that last line with no help indicating the problem. Any advice?
Hi @Kmmaughs
I'm not sure how to do it via Post Functions - but it might be possible via Automation?
It looks like you need:
The last bullet might be best managed via a workflow condition - via automation it would be a status reversal, rather than stopping a user from making the transition.
If you would consider Automation - let me know if the rules above are correct and if there is any other information which might be beneficial - for example, is there a status that ABC-1 transitions to after ABC-3's creation which could be used to stop ABC-4 being created (as rule might just create a new issue each time a related issue is closed).
Ste
Hey Stephen,
I have JSU Automation installed; I hope this is what you were referring to: https://marketplace.atlassian.com/apps/5048/jsu-automation-suite-for-jira-workflows?hosting=server&tab=overview
Looking at your bulleted list, I have the first one working and done (with Automation). The second bullet is the one I'm struggling with. And the third one, I know how to do but am not currently enforcing the rule.
So it's really bullet two. How can I create that ABC-3 issue with a link to ABC-1?
Thanks in advance for taking a look at this.
-K
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
Hi @Kmmaughs
So this is how I built both rules (for reference).
Rule 1:
Rule 2:
----------------------
This is how its built:
----------------------
You can refine these rules of course - for example, if there is a condition for running Rule 1 (eg. a specific issue type).
Let us know if this is sufficient! If not and there is something you'd like to modify, let us know and I'll be happy to assist further :)
Ste
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
Hmm....I don't have a three dots button anywhere.
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
For Rule 2, it's that last bullet - I cannot find a way to set the Linked Issue value from this Task 3 to Task 1.
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
Hi @Kmmaughs
To be clear, I'm using Automation for Jira (native feature) - not JSU Automation Suite.
For example, to access project-level automation:
See more on Automation for Jira in the Knowledge Base.
Ste
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
Ahh, thank you for clarifying; this totally worked! I ended up storing the Parent Link as a custom field value (rather than using the Label field), so when I set up the Automation rule, the condition checks if the custom field is not empty.

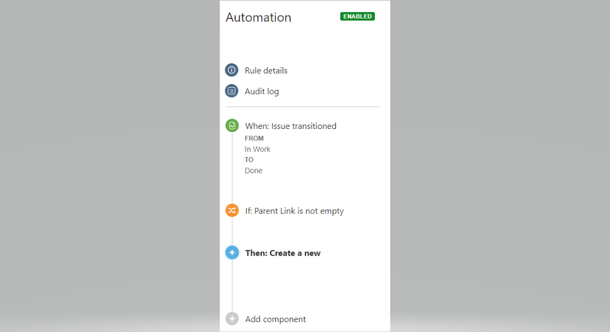

For others reading through, the rule was set up in this manner:
And then when the issue was created, I copied and set various fields. One field I had to set was a Multi-Level Cascading Select value, which I struggled with a bit, but ultimately got it set by using this format in the Additional Fields section:
{
"fields": {
"customfield_11111" : [{ "id": "11111"}] }
}
Thanks so much, again!
You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.
Hi @Kmmaughs
No worries - thanks for sharing your solution with the Community, this will help other users who locate this question!
I really like the way you utilised the "Parent Link" here, great option!
Ste
