Trying to enable HTTPs in JIRA server - change the server.xml file

[Samira Spago]

We made changes following the link (https://confluence.atlassian.com/adminjiraserver/running-jira-applications-over-ssl-or-https-938847764.html?_ga=2.151090545.931027183.1562682248-1268070891.1561965617)  but from some reason that did not work for us.

We used again backup file for server.xml and web.xml and it work fine for HTTP.

Now again when I want to test HTTPs I will follow all steps from link that is noted and after we make changes in JIRA Configuration tool we have to make changes in server.xml with this part:

<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
maxHttpHeaderSize="8192" SSLEnabled="true"
maxThreads="150" minSpareThreads="25"
enableLookups="false" disableUploadTimeout="true"
acceptCount="100" scheme="https" secure="true"
sslEnabledProtocols="TLSv1.2,TLSv1.3"
clientAuth="false" useBodyEncodingForURI="true"
keyAlias="jira" keystoreFile="<Jira_HOME>/jira.jks" keystorePass="changeit" keystoreType="JKS"/>

Connector that is now active for HTTP will remain same (without any other changes)?

Do we have to make changes in web.xml as well?

Thank You!

[Thomas Deiler · Accepted solution]

Dear @Samira Spago ,

I strongly recommend the use of a reverse proxy (Apache,nginx, ...) that terminates SSL instead of enabling this in Tomcat. If you running on Linux you can follow my article how to set up with nginx.

This is best practice and also recommended by Atlassian.

So long

Thomas

[Samira Spago]

Dear @Thomas Deiler

we resolved this issue without recommended use of a reverse proxy. But now there is problem with gadget layout on Dashboard with message "gadget.common.error.500" .

We followed some of the answers on Community with similar issue but none of them helped with resloving this part.

Does this "gadget.common.error.500" message can be resolved with reverse proxy or it is  another cause of this problem?

Thank You

Samira

[Thomas Deiler]

Dear Samira,

most probably this is a SSL cert issue. Jira connects to itself via Rest API. When the SSL cert is selfsigned it has to be added to the Java keystore to be recognized.

So long

Thomas

[Samira Spago]

Dear @Thomas Deiler

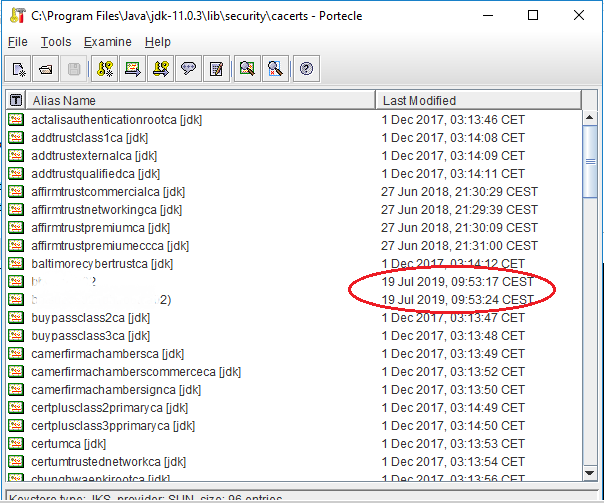

as I found in one of the posts here on Community Atlassian about adding cert to the Java keystore and following Your instruction about this issue now I can confirm that we added our two SSL cert to the Java Keystore (image below).

Do I need to restart Jira server now after adding cert to java keystore?

Thank You

Samira

[Thomas Deiler]

Dear @Samira Spago ,

yes. Modifying the keystore will require the java app to reload this information.

So long

Thomas
