Unable to import test steps in csv file to JIRA project

[Ксения Луканова]

Unable to import test steps in csv file to JIRA project. Please explain me how should test steps be written, if I import my CSV without Xray Importer.

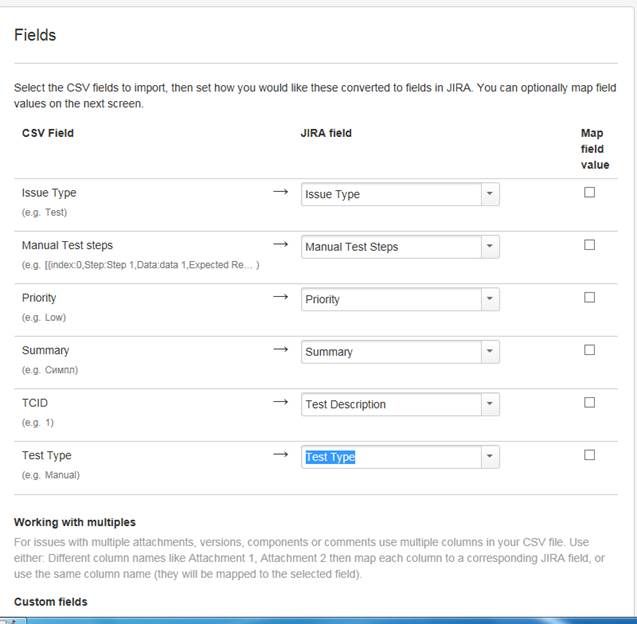

On the photo is how I map my fields.

It is my CSV which I am try to import:

TCID,Summary,Issue Type,Priority,Test Type,Manual Test steps
1,Симпл,Test,Low,Manual,"[{index:0,Step:"Step 1",Data:"data 1",Expected Result:"result 1"},{index:1,Step:"Step 2",Data:"data 2",Expected Result:"result 2"}]"

This is my Error log:

com.atlassian.jira.plugins.importer.imports.csv.CsvDataBean

2019-02-11 15:29:20,518 INFO - ------------------------------

2019-02-11 15:29:20,518 INFO - Importing: Users

2019-02-11 15:29:20,518 INFO - ------------------------------

2019-02-11 15:29:20,518 INFO - Only new items will be imported

2019-02-11 15:29:20,518 INFO - 0 users associated with import. 0 new users were created and imported as active.

2019-02-11 15:29:20,518 INFO - ------------------------------

2019-02-11 15:29:20,518 INFO - Finished Importing : Users

2019-02-11 15:29:20,518 INFO - ------------------------------

2019-02-11 15:29:20,518 INFO - 0 users successfully created.

2019-02-11 15:29:20,518 INFO - Retrieving projects...

2019-02-11 15:29:20,519 INFO - Project ExternalProject{id=null, externalName=null, name=null, key=DMD, url=null, lead=null, description=null, projectCategoryName=null, avatarUrl=null, assigneeType=null, versionCount=0, componentCount=0, issueCount=0} already exists. Not imported

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Importing: Versions

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Only new items will be imported

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Finished Importing : Versions

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Importing: Components

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Only new items will be imported

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Finished Importing : Components

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Retrieving custom fields...

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Importing: Issues

2019-02-11 15:29:20,519 INFO - ------------------------------

2019-02-11 15:29:20,519 INFO - Only new items will be imported

2019-02-11 15:29:20,521 INFO - Importing issue: ExternalIssue{externalId=autoid-307905542724527191, summary=Симпл, issueType=Test}

2019-02-11 15:29:20,531 WARN - Cannot add value [ [[{index:0,Step:Step 1,Data:data 1,Expected Result:result 1},{index:1,Step:Step 2,Data:data 2,Expected Result:result 2}]] ] to CustomField Manual Test Steps in Issue null. Exception Message: Error occurred while deserializing JSON test steps

com.atlassian.jira.issue.customfields.impl.FieldValidationException: Error occurred while deserializing JSON test steps

        at com.xpandit.raven.customfield.ManualTestStepsCustomField.getSingularObjectFromString(Unknown Source)

        at com.xpandit.raven.customfield.ManualTestStepsCustomField.getValueFromCustomFieldParams(Unknown Source)

        at com.xpandit.raven.customfield.ManualTestStepsCustomField.getValueFromCustomFieldParams(Unknown Source)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.customfields.CustomFieldValueFactory.prepareValueForCustomField(CustomFieldValueFactory.java:55)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.customfields.CustomFieldsUtil.setCustomFieldValueForIssue(CustomFieldsUtil.java:182)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.DefaultJiraDataImporter.importExternalCustomFields(DefaultJiraDataImporter.java:1203)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.DefaultJiraDataImporter.createIssue(DefaultJiraDataImporter.java:893)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.DefaultJiraDataImporter.importIssues(DefaultJiraDataImporter.java:764)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.DefaultJiraDataImporter.doImport(DefaultJiraDataImporter.java:390)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.ImporterCallable.call(ImporterCallable.java:26)

        at com.atlassian.jira.plugins.importer.imports.importer.impl.ImporterCallable.call(ImporterCallable.java:15)

        at com.atlassian.jira.task.TaskManagerImpl$TaskCallableDecorator.call(TaskManagerImpl.java:527)

        at com.atlassian.jira.task.TaskManagerImpl$TaskCallableDecorator.call(TaskManagerImpl.java:490)

        at java.util.concurrent.FutureTask.run(FutureTask.java:266)

        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)

        at java.util.concurrent.FutureTask.run(FutureTask.java:266)

        at com.atlassian.jira.task.ForkedThreadExecutor$ForkedRunnableDecorator.run(ForkedThreadExecutor.java:253)

        at java.lang.Thread.run(Thread.java:745)

2019-02-11 15:29:21,071 INFO - Cannot add inactive User(s): DKX6KE5 to role 'Developers' in project 'Demand Enhancements'

2019-02-11 15:29:21,071 INFO - Reindexing last 1 issues imported ...

2019-02-11 15:29:21,331 INFO - Reindexing took 258 ms.

2019-02-11 15:29:21,331 INFO - 1 issues successfully created

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - Finished Importing : Issues

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - Importing: Issue Links & Subtasks

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - Only new items will be imported

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - Finished Importing : Issue Links & Subtasks

2019-02-11 15:29:21,331 INFO - ------------------------------

2019-02-11 15:29:21,331 INFO - No issues need to be reindexed.

[Andreas]

Hi @Ксения Луканова

you've missed the JSON format. Due to the new feature of having custom test step fields, the structure of the JSON needs to be adjusted: e.g.

[
{
"index": 1,
"fields": {
"Action": "Step 1",
"Data": "data 1",
"Expected Result": "result 1"
},
"attachments": []
},

{
"index": 2,
"fields": {
"Action": "Step 2",
"Data": "data 2",
"Expected Result": "result 2"
},
"attachments": []
}
]

The new key "fields" is an object which stores the default fields as well as any test step custom fields you might want to use.

Cheers

Andreas

[Sergio Freire - Xblend]

Exactly, thanks @Andreas

[Sergio Freire - Xblend]

Hi @Ксения Луканова ,

the official supported process is by using the built-in Test Case Importer, which is based on CSV files having a specific layout.

More info here.

It should be possible to import using the standard CSV, but it's not the recommended way as it is harder to manage. More info on the exact layout for the steps here.

Regards

Sergio
