Show multiple or one or none CF based on Multi Select field

[Joel Batac]

Hi,

I have a multi select field (Customer Impacts) that has 3 options- Asset Management,  Branch Banker Support and Business Banking. I also have 3 number type fields - CI_AM, CI_BBS, CI_BB. (one for each options)

The requirement is, if I select any of the 3 options from the from the Multi select field, the corresponding number field should show. Example, if I pic Asset Management, CI_AM should show. If I pick both Asset Management and Business Banking both CI_AM and CI_BB should show and so on...

I tried several approach to achieve this but no luck. Any help is appreciated.

def customFieldManager = ComponentAccessor.getCustomFieldManager()

def CustomerImpactCF = getFieldByName("Customer Impacts")

def CI_AM_CF = getFieldByName("CI_AM")

def CI_BBS_CF = getFieldByName("CI_BBS")

def CI_BB_CF = getFieldByName("CI_BB")

def CustomerImpactCFValue =  CustomerImpactCF.getValue() as List

CustomerImpactCFValue.each() { CustomerImpactCFValueOption ->

  if ("Asset Management" in CustomerImpactCFValueOption.value) {

    CI_AM_CF.setFormValue('');

    CI_AM_CF.setHidden(false);

    CI_AM_CF.setRequired(true);

  }

 if ("Branch Banker Support" in CustomerImpactCFValueOption.value) {

    CI_BBS_CF.setFormValue('');

    CI_BBS_CF.setHidden(false);

    CI_BBS_CF.setRequired(true);

  }

  if ("Business Banking" in CustomerImpactCFValueOption.value) {

    CI_BB_CF.setFormValue('');

    CI_BB_CF.setHidden(false);

    CI_BB_CF.setRequired(true);

  }

  else {

    CI_AM_CF.setFormValue('');

    CI_AM_CF.setHidden(true);

    CI_AM_CF.setRequired(false);

    CI_BBS_CF.setFormValue('');

    CI_BBS_CF.setHidden(true);

    CI_BBS_CF.setRequired(false);

    CI_BB_CF.setFormValue('');

    CI_BB_CF.setHidden(true);

    CI_BB_CF.setRequired(false);

}

//}

[Ram Kumar Aravindakshan _Adaptavist_ · Accepted solution]

Hi @Joel Batac

For your requirement, you should try something like this:-

import com.onresolve.jira.groovy.user.FieldBehaviours
import groovy.transform.BaseScript

@BaseScript FieldBehaviours behaviours
def sampleMultiSelect = getFieldById(fieldChanged)
def sampleMultiSelectValue = sampleMultiSelect.value.toString()

def sampleNumber1 = getFieldByName('Sample Number 1')
def sampleNumber2 = getFieldByName('Sample Number 2')
def sampleNumber3 = getFieldByName('Sample Number 3')

sampleNumber1.hidden = true
sampleNumber2.hidden = true
sampleNumber3.hidden = true

if (sampleMultiSelectValue == '[Behaviour, Listener, Fragment]') {
    sampleNumber1.hidden = false
    sampleNumber2.hidden = false
    sampleNumber3.hidden = false
} else if (sampleMultiSelectValue == '[Behaviour, Listener]') {
    sampleNumber1.hidden = false
    sampleNumber2.hidden = false
} else if (sampleMultiSelectValue == '[Behaviour, Fragment]') {
    sampleNumber1.hidden = false
    sampleNumber3.hidden = false
} else if (sampleMultiSelectValue == '[Listener, Fragment]') {
    sampleNumber2.hidden = false
    sampleNumber3.hidden = false
} else if (sampleMultiSelectValue == '[Behaviour]') {
    sampleNumber1.hidden = false
} else if (sampleMultiSelectValue == '[Listener]') {
    sampleNumber2.hidden = false
} else if (sampleMultiSelectValue == '[Fragment]') {
    sampleNumber3.hidden = false
}

Please note that the sample code provided above is not 100% exact to your environment. Hence, you will need to make the required modifications.

Below are a few screenshots for your reference:-

1) When only the Behaviour option is selected from the Multi-Select List, only the Sample Number 1 field is displayed.

2) When only the Listener option is selected from the Multi-Select List, only the Sample Number 2 field is displayed.

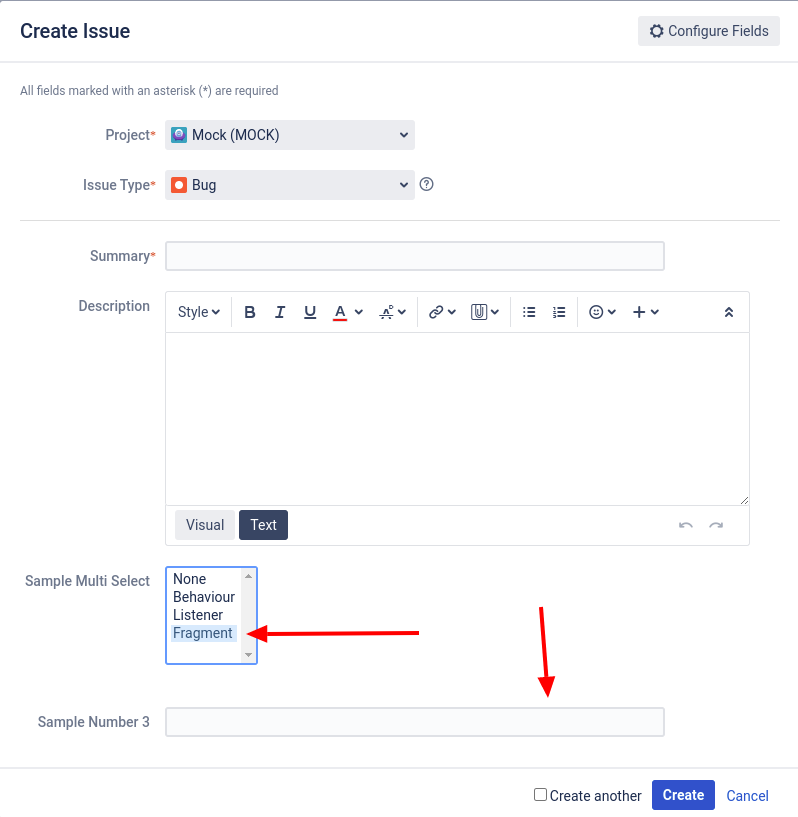

3) When only the Fragment option is selected from the Multi-Select List, only the Sample Number 3 field is displayed.

4) When both the Behaviour and Listener options are selected from the Multi-Select List, both the  Sample Number 1 and Sample Number 2 fields are displayed.

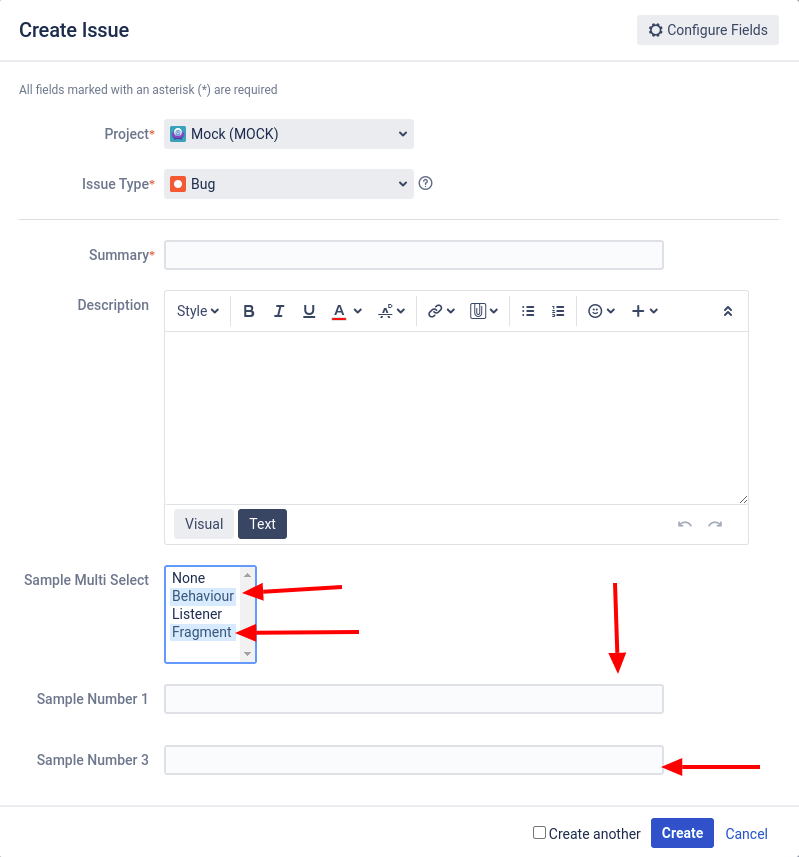

5) When both the Behaviour and Fragment options are selected from the Multi-Select List, both the  Sample Number 1 and Sample Number 3 fields are displayed.

6) When both the Listener and Fragment options are selected from the Multi-Select List, both the  Sample Number 2 and Sample Number 3 fields are displayed.

7) When all options are selected from the Multi-Select List, all the Number fields are displayed.

I hope this helps to answer your question. :)

Thank you and Kind regards,

Ram

[Joel Batac]

Thanks Ram. Is it possible to do a  loop? In reality the multi select field contains 27 options ( i just gave a 3 for simplicity)

[Ram Kumar Aravindakshan _Adaptavist_]

Hi @Joel Batac

There is no simple way for this.

Making a loop will not work as expected and will cause errors.

Thank you and Kind regards,

Ram
