IIS reverse proxy with Confluence

[Aaron Newark]

I am setting up a reverse proxy in IIS for Confluence (eventually Jira, Bitbucket and Bamboo too) based on the directions here (https://confluence.atlassian.com/kb/proxying-atlassian-server-applications-with-microsoft-internet-information-services-iis-833931378.html) and I can't get it to work.  I am trying to setup the proxy from https://server.domain.com/confluence and based on my understanding of the documentation I change the context path from this:

<Context path="" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">

to this:

<Context path="/confluence" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">

and I commented out the default connector for the HTTPS Proxying one from the config file and set it up as recommened like this

 <Connector port="8090" connectionTimeout="20000" redirectPort="8443"
 maxThreads="48" minSpareThreads="10"
 enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
 protocol="org.apache.coyote.http11.Http11NioProtocol"
 scheme="https" secure="true" proxyName="server.domain.com" proxyPort="443"/>

I setup the rules for the URL rewrite, and Syncology setup via the IIS Manager UI and it saves my changes to web.config as the following:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <system.webServer>
        <rewrite>
            <rules>
                <rule name="Confluence Proxy" stopProcessing="true">
                    <match url="(.*)" />
                    <action type="Rewrite" url="http://server.domain.com:8090/{R:1}" />
                </rule>
                <rule name="Synchrony HTTP" stopProcessing="true">
                    <match url="synchrony/(.*)" />
                    <conditions logicalGrouping="MatchAll" trackAllCaptures="false" />
                    <action type="Rewrite" url="http://localhost:8091/synchrony/{R:1}" />
                </rule>
                <rule name="Synchrony Web Sockets Reverse Proxy" stopProcessing="true">
                    <match url="ws://(.*)" />
                    <conditions logicalGrouping="MatchAll" trackAllCaptures="false" />
                    <action type="Rewrite" url="ws://localhost:8091/{R:1}" />
                </rule>
                <rule name="Confluence Reverse Proxy" enabled="false" stopProcessing="true">
                    <match url="(.*)" />
                    <conditions logicalGrouping="MatchAll" trackAllCaptures="false" />
                    <action type="Rewrite" url="http://localhost:8090/{R:1}" />
                </rule>
            </rules>
        </rewrite>
        <security>
            <requestFiltering allowDoubleEscaping="true" />
        </security>
        <caching enabled="false" enableKernelCache="false" />
    </system.webServer>
</configuration>

But then after I save all config changes, and start the Confluence server I get this error from Tomcat when I go to https://server.domain.com/confluence almost immediately:

HTTP Status 404 – Not Found

---

Type Status Report

Message Not found

Description The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.

---

Apache Tomcat/9.0.10

However if I keep all my settings the same but remove the /confluence from the context path, the browser will load for a bit and then attempt to bring up the login page but doesn't append the /confluence folder to the end (due to the context path not being there I assume).  With either configuration when I check the Tomcat logs (C:\Program Files\Atlassian\ApplicationData\Confluence\logs) there are no errors in the log and the warnings that are there are the same as I saw before setting this up, so nothing seems out of what is expected there.  What am I missing here in the setup?  Let me know if you need any other information on this.

[Micko · Accepted solution]

The rules above are good but the first one redirects to the wrong location.

I came across this exact same issue two years later and this post helped. My URL Rewrite rules in IIS were broken. I was effectively dropping the confluence from the redirect using {R:1} with the  pattern below.

(^confluence/(.*))|(^confluence$)

For "https://domain.com/confluence", the pattern matched but only {R:0} and {R:3} contained the path required for the rewrite. Adding a trailing back slash or using {R:0} rectified the issue so I had to revisit my rules.

If you're seeing this issue, double check the URL Rewrite rules in IIS and retest your patterns.

[Aaron Newark]

I think what you're saying makes sense, but back when I couldn't get help I switched from an IIS proxy to an NGINX proxy, the setup was way easier, and met the needs well enough.  Thanks for the follow-up answer, I'm going to accept it, but I don't' have a way to verify it.

[Zhi Lu]

Hi Micko,

I am running into exactly the same problem...

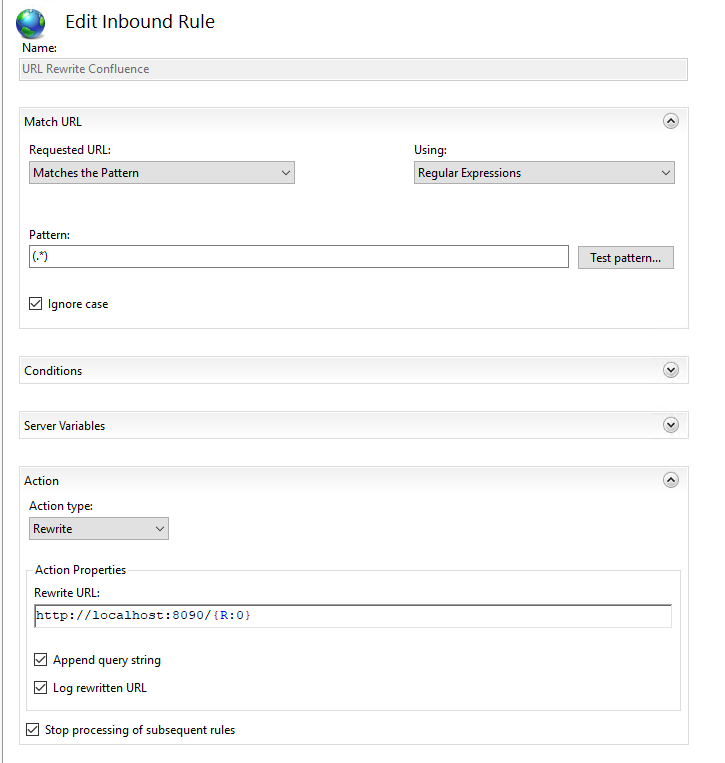

Have tried to update the URL rewrite to {R:0} but still it doesn't work.

"Adding a trailing back slash" - could you please exlain more on this? thanks.

Zhi

[Micko]

My current rule uses {R:1}. My description of the solution is misleading.

[Micko]

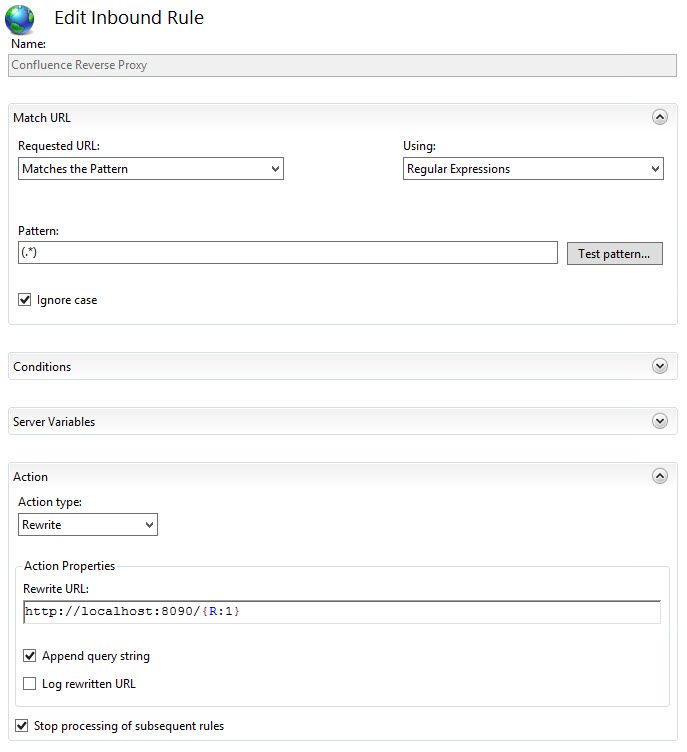

I'm not sure why my screenshot was dropped. This is my current rule but it uses a subdomain "https://confluence.domain.com" so I do need everything after the domain.

Just to clarify, I wasn't detailing a solution at the time, just that my rule was incorrect and to check your own rules. I've also switched to subdomains since then so the rule was dealing with multiple sites under the one domain. R:0 takes the entire input but R:1 only matches the pattern so in both our rules, R:0 and R:1 are the same as there is no component of the pattern outside the braces.

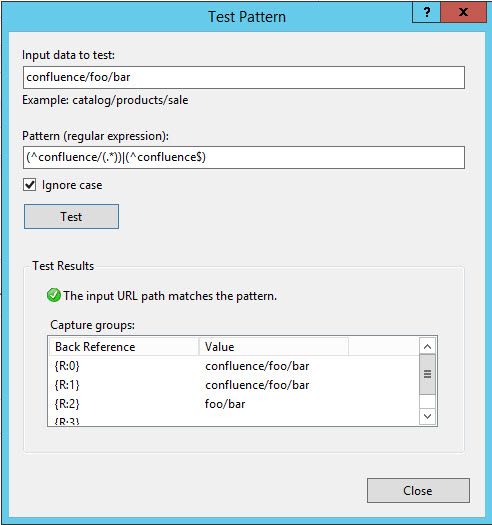

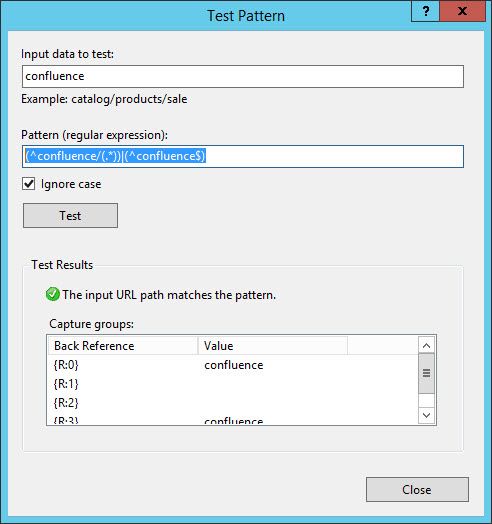

The trailing backslash was in reference to this rule (^confluence/(.*))|(^confluence$). In this case, if the pattern was confluence on it's own, only R:0 contained confluence, R:1 was blank. If I added a backslash, confluence/ then both R:0 and R:1 contain confluence/. This meant the rule using R:1 was working for longer patterns but not for the base domain.

"https://domain.com/confluence" failed.

"https://domain.com/confluence/" worked.

"https://domain.com/confluence/foo/bar" also worked.

[Zhi Lu]

Hi Micko,

Sorry for my late response, I was away in the last one week.

Thank you so much for all the shared details but at the end we shifted to NGINX, really which is way more easier.

Thanks,

Luz

[JP _AC Bielefeld Leader_]

Hi Aaron,

when you change the path in the connector section, did you also change the path at the context section:

<Context path="/confluence" docBase="../confluence" reloadable="false" useHttpOnly="true">

Best

JP

[Aaron Newark]

Yes I tried that at first and only removed it to see if it would help with the 404 errors, which it kind of did.  As soon as I put in the context path it gives me the 404, but if I remove it the web server seems to come up and is accessible, but doesn't redirect to the proper proxy folder as it doesn't have the context path. That's what the issue is here it seems.  Thanks for the suggestion though!
