Nginx + Confluence + Jira Issue

I can not get Confluence and Jira to be served through NGINX. I would appreciate any help on this matter. I have followed several documents now, including atlassians, and configured confluence and NGINX accordingly, however when I change the context path in the confluence configuration as per the documentation, confluence no longer servers/comes up.

 <Context path="/confluence"

results in a 404.

and with the config reverted, nothing forwards through NGINX. I've included the NGINX config below.

# HTTPS server
#
server {
listen 443;
server_name localhost;

ssl on;
ssl_certificate /etc/ssl/cert.pem;
ssl_certificate_key /etc/ssl/server.pem;

ssl_session_timeout 5m;

ssl_protocols SSLv2 SSLv3 TLSv1;
ssl_ciphers HIGH:!aNULL:!MD5;
ssl_prefer_server_ciphers on;

location / {
root /usr/local/www/nginx;
index index.html index.htm;

}

location /jira {
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass https://<ip-of-jira-server>:8443/jira;
proxy_redirect off;
}

location /confluence {
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://127.0.0.1:8443/confluence;
proxy_redirect off;
}

}

1 answer

0 votes

Hello Nina,

Hmm, is Confluence running on port 8443 on localhost? If you have SSL terminating at nginx, do you need SSL between nginx and Confluence?

What does server.xml have in it - can you post it here?

Can you connect to Confluence directly via URL like

http://IPADDRESS:8090/confluence
https://IPADDRESS:8443/confluence

Regards, James

You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.

Comment

<Connector port="8090" connectionTimeout="20000" redirectPort="8443"

maxThreads="48" minSpareThreads="10"

enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"

protocol="org.apache.coyote.http11.Http11NioProtocol"

</Context>

</Context>

</Host>

</Engine>

<!--

To run Confluence via HTTPS:

* Uncomment the Connector below

* Execute:

%JAVA_HOME%\bin\keytool -genkey -alias tomcat -keyalg RSA (Windows)

$JAVA_HOME/bin/keytool -genkey -alias tomcat -keyalg RSA (Unix)

with a password value of "changeit" for both the certificate and the keystore itself.

* Restart and visit https://localhost:8443/

For more info, see https://confluence.atlassian.com/display/DOC/Running+Confluence+Over+SSL+or+HTTPS

-->

<Connector port="8443" maxHttpHeaderSize="8192"

maxThreads="150"

minSpareThreads="25"

protocol="org.apache.coyote.http11.Http11NioProtocol"

enableLookups="false"

disableUploadTimeout="true"

acceptCount="100"

scheme="https"

secure="true"

clientAuth="false" sslProtocols="TLSv1,TLSv1.1,TLSv1.2" sslEnabledProtocols="TLSv1,TLSv1.1,TLSv1.2" SSLEnabled="true"

URIEncoding="UTF-8"

keystoreFile="/etc/ssl/certs/java/cacerts"

keyAlias="*.domain.com"

keystorePass="SECRET" keystoreType="JKS"

proxyName="domain.com" proxyPort="443"

</Service>

</Server>

You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.

Comment

<Connector port="8090" connectionTimeout="20000" redirectPort="8443"

maxThreads="48" minSpareThreads="10"

enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"

protocol="org.apache.coyote.http11.Http11NioProtocol"

</Context>

</Context>

</Host>

</Engine>

<!--

To run Confluence via HTTPS:

* Uncomment the Connector below

* Execute:

%JAVA_HOME%\bin\keytool -genkey -alias tomcat -keyalg RSA (Windows)

$JAVA_HOME/bin/keytool -genkey -alias tomcat -keyalg RSA (Unix)

with a password value of "changeit" for both the certificate and the keystore itself.

* Restart and visit https://localhost:8443/

For more info, see https://confluence.atlassian.com/display/DOC/Running+Confluence+Over+SSL+or+HTTPS

-->

<Connector port="8443" maxHttpHeaderSize="8192"

maxThreads="150"

minSpareThreads="25"

protocol="org.apache.coyote.http11.Http11NioProtocol"

enableLookups="false"

disableUploadTimeout="true"

acceptCount="100"

scheme="https"

secure="true"

clientAuth="false" sslProtocols="TLSv1,TLSv1.1,TLSv1.2" sslEnabledProtocols="TLSv1,TLSv1.1,TLSv1.2" SSLEnabled="true"

URIEncoding="UTF-8"

keystoreFile="/etc/ssl/certs/java/cacerts"

keyAlias="*.domain.com"

keystorePass="secret" keystoreType="JKS"

proxyName="domain.com" proxyPort="443"

</Service>

</Server>

You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.

Comment

Hi James,

I've attempted to respond inline here, but it's not showing my reply. Is there another way we can communicate so I can post you my configs.

You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.

Comment

@Nina Limmer- I just got your recent response out of the spam bucket. The 'bot is not perfect and can be a bit over-zealous (as well as completely miss other stuff)

You must be a registered user to add a comment. If you've already registered, sign in. Otherwise, register and sign in.

Comment

Thanks Nic,

I've tested a few things.

I can access

http://confluence.domain.com:8443

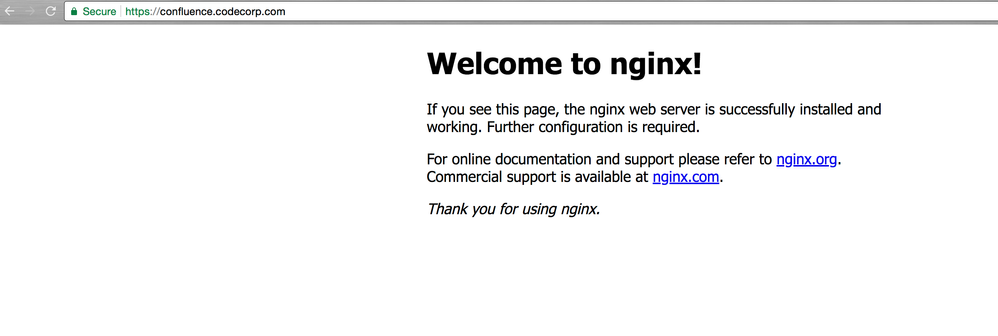

And it shows NGINX ( as shown in the screenshot attached)

However confluence isn't coming up, and confluence is now throwing errors. I believe possibly I have the server.xml misconfigured.

21-Mar-2018 16:19:39.769 INFO [http-nio-8090-exec-7] org.apache.coyote.http11.AbstractHttp11Processor.process Error parsing HTTP request header

Note: further occurrences of HTTP header parsing errors will be logged at DEBUG level.

java.lang.IllegalArgumentException: Invalid character found in method name. HTTP method names must be tokens

at org.apache.coyote.http11.AbstractNioInputBuffer.parseRequestLine(AbstractNioInputBuffer.java:235)

at org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1045)

at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:684)

at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1539)

at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.run(NioEndpoint.java:1495)

at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)

at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)

at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)

at java.lang.Thread.run(Thread.java:748)

21-Mar-2018 16:19:39.769 INFO [http-nio-8090-exec-8] org.apache.coyote.http11.AbstractHttp11Processor.process Error parsing HTTP request header
