https and tomcat

[Bahman Sharzad]

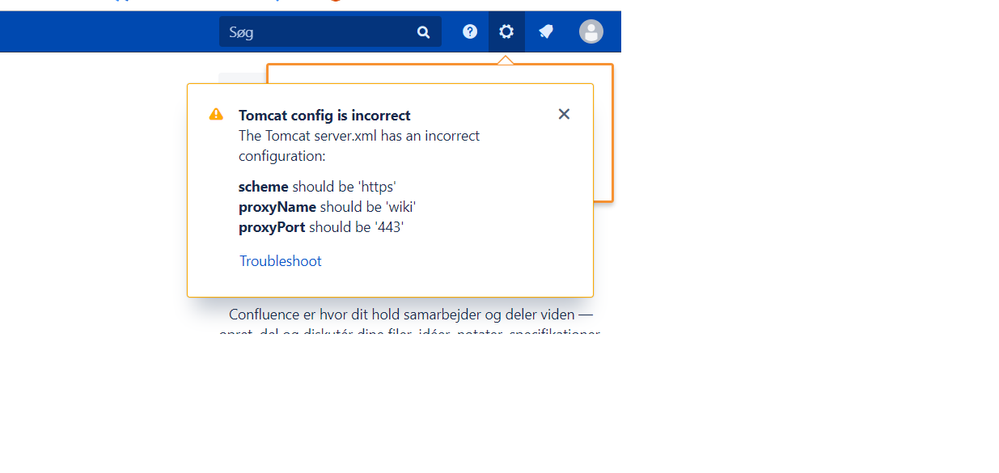

when i login as admin i have an error tomcat config is incorrect....

i  open the troubleshoot and do the same as document. but not possible to connect .

here is my server.xml and nginx and screenshut of error

server.xml

---------------

<Connector port="8090" connectionTimeout="20000" redirectPort="8443"
maxThreads="48" minSpareThreads="10"
enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
protocol="org.apache.coyote.http11.Http11NioProtocol"
scheme="https" proxyName="wiki" proxyPort="443"/>

<Engine name="Standalone" defaultHost="localhost" debug="0">
<Host name="localhost" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false" startStopThreads="4">
<Context path="/confluence" docBase="../confluence" debug="0" reloadable="false">
<!-- Logging configuration for Confluence is specified in confluence/WEB-INF/classes/log4j.properties -->
<Manager pathname=""/>
<Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
</Context>

<Context path="${confluence.context.path}/synchrony-proxy" docBase="../synchrony-proxy" debug="0"
reloadable="false" useHttpOnly="true">
<Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
</Context>
</Host>
</Engine>
</Service>
</Server>

and nginx

-------------

server {
listen wiki:80;
server_name wiki;

listen 443 ssl;
ssl_certificate /etc/nginx/ssl/nginx.crt;
ssl_certificate_key /etc/nginx/ssl/nginx.key;

ssl_session_cache shared:SSL:20m;
ssl_session_timeout 50m;

ssl_protocols SSLv2 SSLv3 TLSv1 TLSv1.2;

ssl_prefer_server_ciphers on;
ssl_ciphers ECDH+AESGCM:ECDH+AES256:ECDH+AES128:DH+3DES:!ADH:!AECDH:!MD5;

ssl_dhparam /etc/nginx/ssl/dhparam.pem;

add_header Strict-Transport-Security "max-age=31536000";

access_log /var/log/nginx/confluence.local-access.log;
error_log /var/log/nginx/confluence.local-error.log;

auth_basic "Private";
#auth_basic_user_file /etc/nginx/.htpasswds/confluence;
#auth_basic_user_file /usr/local/nagios/etc/htpasswd.users;

# root /var/www/vhosts/confluence.local;
# index index.php index.html;

location /confluence {
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://localhost:8090/confluence;
}
location /synchrony {
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Server $host;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://localhost:8091/synchrony;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "Upgrade";
}
}

[Bahman Sharzad · Accepted solution]

Hi,

It's working now it was taypo i wrote proxyname istedet of ProxyName and so on.

Can you please close the case?

[Edwin Kyalangalilwa]

Hi @Bahman Sharzad,

Did you restart Confluence after making the change to server.xml?
