Dynamically Extract information from Testingborad

For our Robot framework Automation i want to:
from our project (e.g. PRJ)
extract gherkin test steps from the testing board.

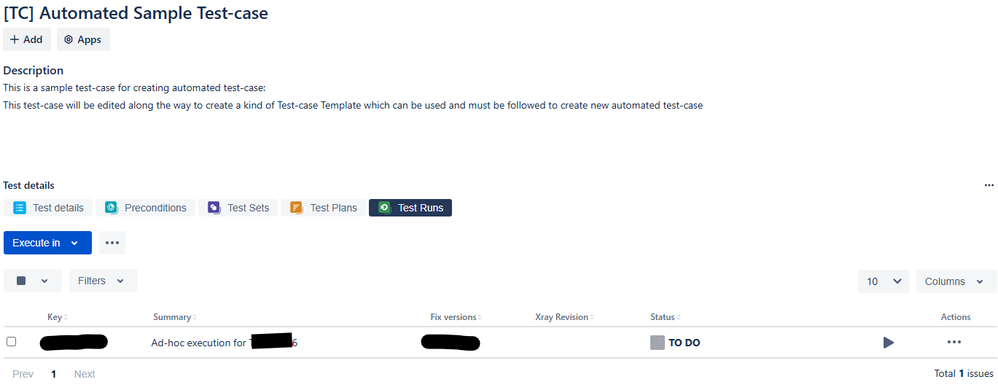

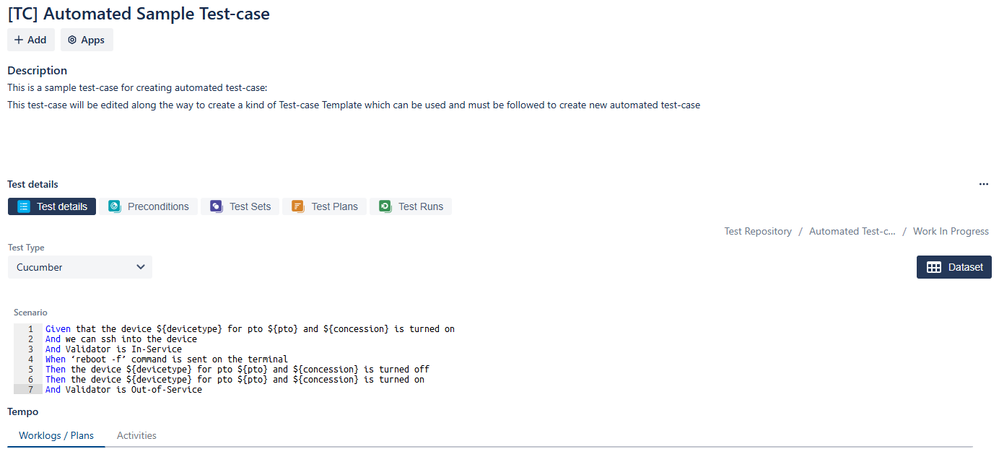

The test-case is created with cucumber steps and dataset. (PRJ-001)

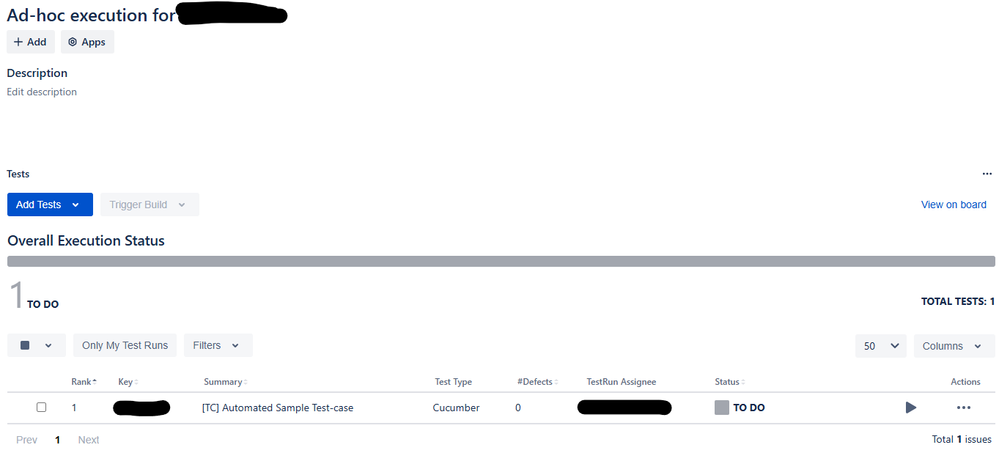

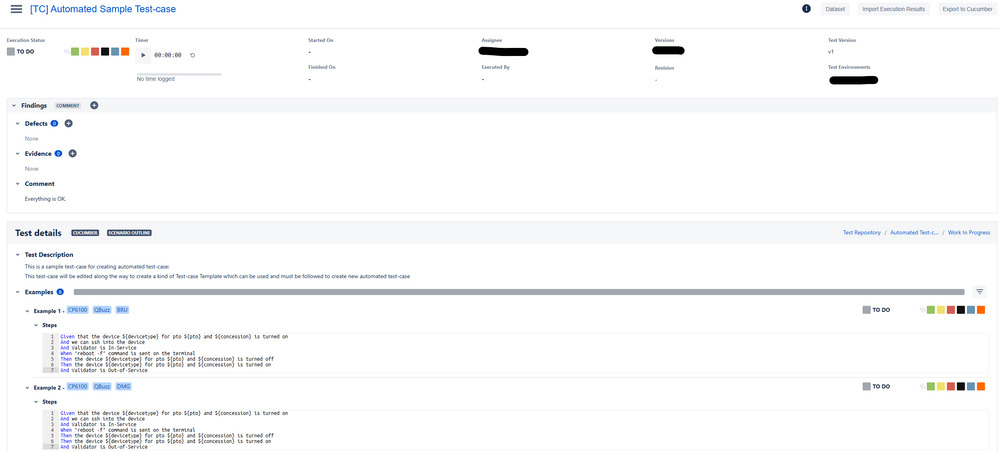

The test-case is executed in a execution (PRJ-002)

I'm trying to do this with API and/or GraphQL, but no success as so far...
My question is it possible?
The reason is that we want to have 1 source of information (which is XRAY) for creating test-cases.
I can access the Test-cases and i can access the Test-Executions and get the information

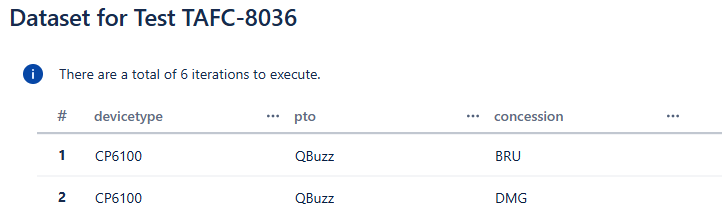

the problem is that when using a dataset linked to cucumber in the testingboard there will be more test-cases/ examples/ iterations which i cannot retrieve.

3 answers

0 votes

Finally got it. Pulling :
Project ID with :

query GetProjectId($projectKey: String!) {
getProjectSettings(projectIdOrKey: $projectKey) {
projectId
}
}

With this project ID, i can pull the test keys from the repository:

query GetTests($projectId: String!, $path: String!) {
getTests(
projectId: $projectId,
folder: { path: $path, includeDescendants: false },
limit: 50
) {
results {
issueId
testType {
name
}
jira(fields: ["key"]) # This is the correct way to request Jira fields
}
}
}

Next is getting the individual test-details with :
query GetTestDetails($testKey: String!) {
getTests(jql: $testKey, limit: 1) {
results {
jira(fields: ["key", "summary"])
gherkin
testType {
name
}
steps {
id
data
action
result
}
dataset {
parameters {
name
type
}
rows {
order
Values
}
}
}
}
}

Mixing it all together with a little python script and now i'm able to convert the Test-cases (only Cucumber and Manual by the way, as generic is not supported from the cloud with API/GraphQL)

So i've managed to answer my question.
