JIRA automation incoming webhook running JQL with custom field

[Lukáš Meitner]

Hi all,

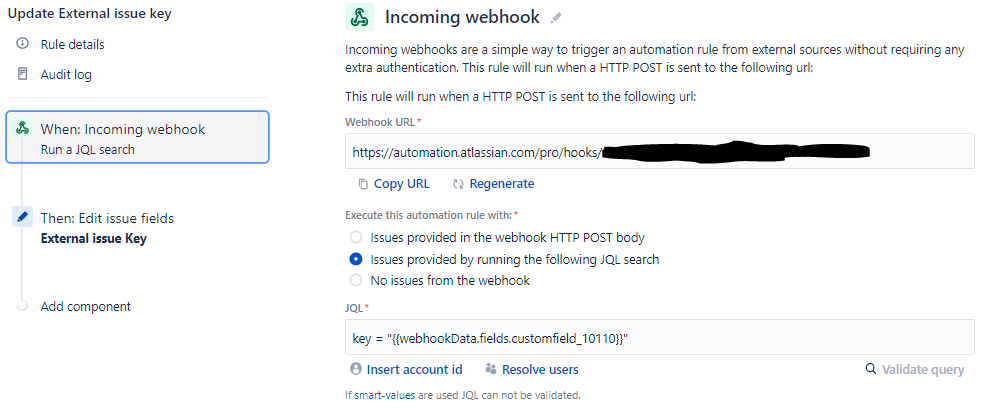

Based on automation, I try to integrate two instances (for this purpose I will call them instance A and instance B) of JIRA. In the instance A, I have an automation (Automation 1) sending a POST request to create an issue in the instance B. The instance B listening the webhook URL (Automation 2) and creates an issue. Into a custom field "External issue Key" saves a key of an issue from the instance A. Then, I'd like to synchronize an issue key from the instance B to a custom filed "External issue Key" (customfield_10110) into the instance A. So I created a new incoming webhook automation in the instance A, which runs by a JQL search:
key = "{{webhookData.fields.customfield_10110}}"

and a POST request in the Automation 2 (so the automation creates the issue, saves the issue key into the "External issue Key" field and sends the request with custom data) which sends key and customfield_10110:

Unfortunately, I receive an error with details:
Incoming webhook trigger failed to run JQL search:
"(key = "") AND (project in (10142))" - The issue key '' for field 'key' is invalid.

I am starting to be mad, I tried a milion of variants of the JQL, included "key", "issue", "issuekey", "{{webhookData.fields.customfield_10110... fields.customfield_10110.value... issue.customfield... etc. but did not hit the right one. I tried to send whole issue data in the Automation 2.

I was seeking for some documentation of smart values, webhookData and custom fields in JQL running incoming webhook, or community discussions, but nothing found, nothing helped.

Please, any idea how to resolve it?

Thank you very much.

[Lukáš Meitner · Accepted solution]

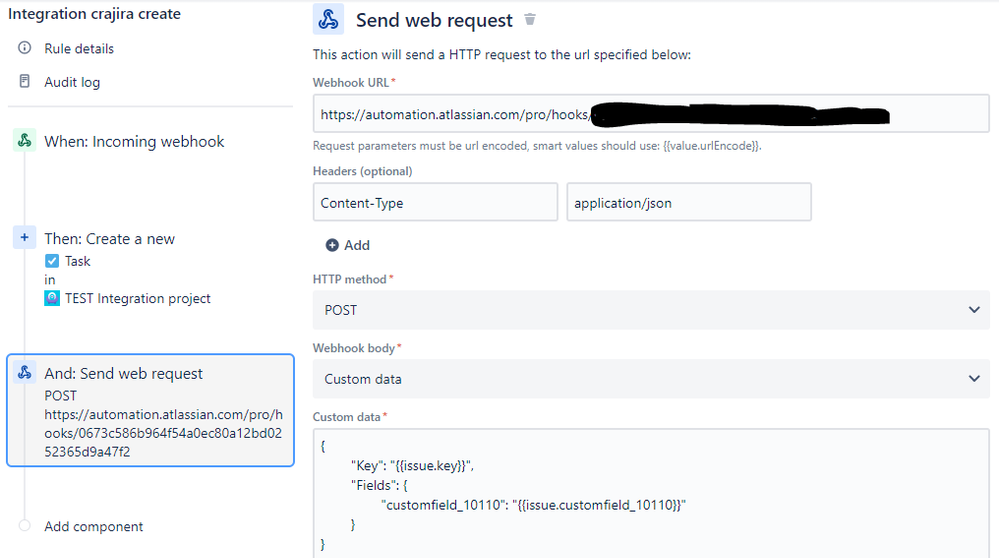

In the chain of actions: recieve incoming webhook call -> create an issue -> send web request; the request I try to construct worked with data from the incoming webhook, not from the created issue. When I added a new branch into the automation right after the create action, limited the branch by a JQL ("External issue key" ~ "{{webhookData.key}}"), and moved the send web request action into the branch, the automation will start to read issue data, so that it can put a value from the "External issue key" field stored in the issue. See bellow:

The result is, that the JQL serch running the Automation 1 returns non empty value from "{{webhookData.fields.customfield_10110}}" and it is able to identify an issue, where I want to add a value into the "External issue key" field.

Best regards, Lukas

[Bill Sheboy]

Hi @Lukáš Meitner

That error message seems to indicate the field/location in the {{webhookData}} is empty.

Have you tried to remove the JQL search on the trigger (switching to the "No issues from the webhook" option), and just write the webhookData to the audit log?  That may confirm if the information has what you expect.

Kind regards,
Bill

[Lukáš Meitner]

Hi  @Bill Sheboy

see bellow, I found a solution.
